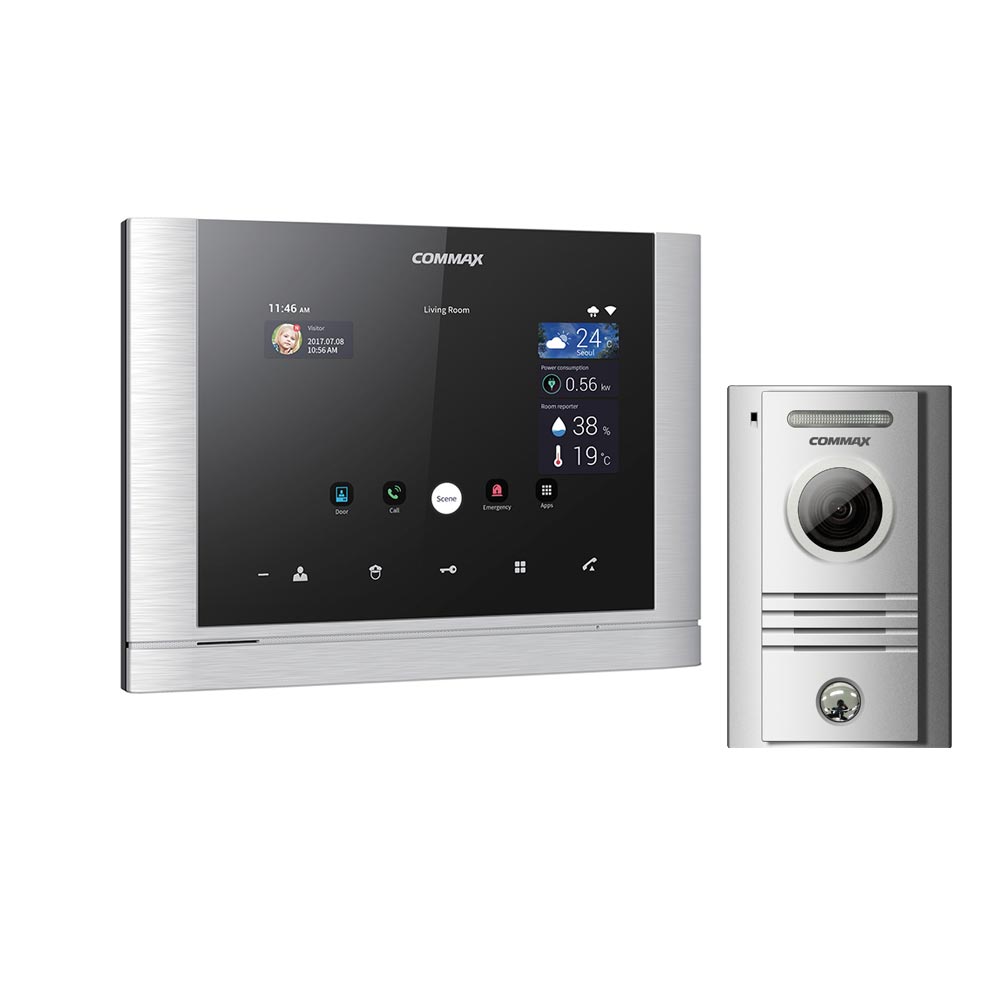

Commax Video Intercom Phone CDV-70M/DRC-40K

COMMAX Video Intercom Kit with Fine View Technology 7″  Monitor & Door Camera. CDV-70M is a 7 inch metallic monitor that responsible for security.

Function – Monitor ( CDV-70M)

  • 7 inch TFT LCD screen
  • PAL/NTSC convertible
  • Video talk and door lock release enable (both individual and public entrance)
  • Support 2 Monitors, 2 Cameras and 2 Interphones

Function – Door Camera (DRC-40K)

  • Illuminance sensor
  • Out door model
  • Wall-mounted type
  • House call and talk
  • Built-in white LED



Categories: ,

Description

Specification - Monitor

Power source: AC 100-240V, 50/60Hz
Mount type: Wall-mounted type
Mount type Operating temp.: 0℃~40℃
Wiring: Door camera: 4 wires | Interphone: 4 wire
Distance: Door camera: 50m (0.65Ø) | Floor Distributor: 30m (0.65Ø)
Consumption: Max.10W/standby 3.4W
Dimension(mm): 244(W)×180(H)×18(D)

Specification - Door Camera

Power source: 12V(From monitor)
Operation Temp.: -40℃~+40℃
Wiring: 4 wires
Camera view angle: Horizontal 75°/ Vertical 55°
Distance: 50m (Ø0.65)
Dimension(mm: 96(W)×155(H)×32(D)
