Dahua-IPC-HDBW1230E-Dome-Network-Camera

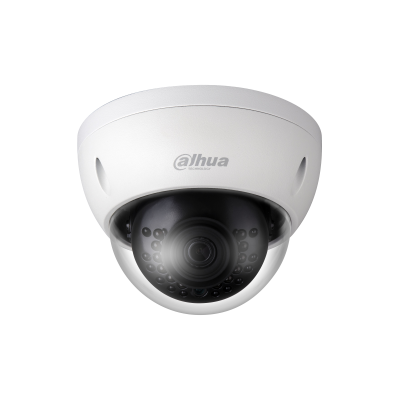

Dahua IPC-HDBW1230E IR Dome Network Camera – 2MP

Key Features

  • 1/2.7” 2Megapixel progressive CMOS
  • H.265 & H.264 dual-stream encoding
  • 25/30fps@1080P(1920×1080)
  • DWDR, Day/Night(ICR), 3DNR, AWB, AGC, BLC
  • Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
  • 2.8mm fixed lens (3.6mm optional)
  • Max IR LEDs length 30m
  • IP67, IK10, PoE



Category:

Description

Camera

Image Sensor
Effective Pixels
RAM/ROM
Scanning System
Electronic Shutter Speed
Minimum Illumination
S/N Ratio
IR Distance
IR On/Off Control
IR LEDs

: 1/2.7” 2Megapixel progresive CMOS
: 1920(H)x1080(V)
: 256MB/128MB
: Progressive
: Auto/Manual, 1/3~1/100000s
: 0.08Lux/F2.0( Color,1/3s,30IRE) | 0.3Lux/F2.0( Color,1/30s,30IRE) | 0Lux/F2.0(IR on)
: More than 50dB
: Distance up to 30m(98ft)
: Auto/ Manual
: 24

Lens

Lens Type
Mount Type
Focal Length
Max. Aperture
Angle of View
Focus Control
Close Focus Distance

DORI Distance

: Fixed
: Board-in
: 2.8 mm
: F2.0/F2.0
: H: 104°/92°, V: 55°/50°
: Fixed
: 0.6m(0.9m)
Lens               Detect              Observe              Recognize              Identify
2.8 mm         40(131ft)          16(52ft)              8(26ft)                    4(13ft)
3.6 mm         53(174ft)          21(69ft)              11(36ft)                   5(16ft)

Technical Specification PDF: Dahua IPC-HDBW1230E IR Dome Network Camera – 2MP
