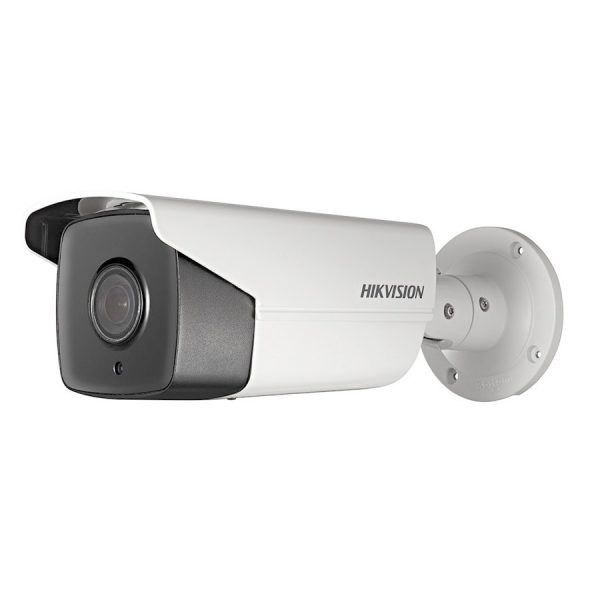

Hikvision DS-2CD1043G0-I Network Bullet Camera

Key Features

  • 1/3″ progressive scan CMOS
  • 2560 × 1440@20fps
  • H.265+, H.265, H.264+, H.264
  • Dual stream
  • Digital WDR (Wide Dynamic Range)
  • 3D DNR (Digital Noise Reduction)
  • Up to 30 m IR range
  • PoE (Power over Ethernet)
  • IP67

Description

The Hikvision DS-2CD1043G0-I Outdoor Bullet Camera is dedicated for professional IP CCTV systems. This IR fixed bullet compact camera has been equipped with 4 MP 1/3″ CMOS sensor providing good video coverage even in low-light conditions. Along with IR illuminator made in EXIR 2.0 technology with range up to 30 m, the camera can also operate in complete darkness. The built-in 2.8 mm lens has 100° viewing angle. The IP67-rated housing of the camera protects the electronics against adverse weather conditions. The camera can be powered conventionally with a 12 VDC source or with the use of PoE option (802.3af).

Operating Conditions : -30 °C to 50 °C (-22 °F to 122 °F), humidity: 95% or less (non-condensing)

Power Supply : 12 VDC ± 25%, 5.5 mm coaxial power plug PoE (802.3af, class 3)

Power Consumption and Current : 12 VDC, 0.4 A, Max: 5 W PoE: (802.3af, 36 V to 57 V), 0.2 A to 0.13 A, Max: 7 W

Protection Level : IP67 TVS 2000V lightning protection, surge protection and voltage transient protection

Material : Metal & Plastic

Dimensions : Camera: Ø 70 mm × 172.7mm ( 2.7″ × 6.8″) With package: 216 mm × 121 mm × 118 mm (8.5″ × 4.8″ × 4.6″)

Weight : Camera: approx. 280 g (0.62 lb.) With package: approx: 530 g (1.17 lb.)

Camera Specification

  • Image Sensor : 1/3″ progressive scan CMOS
  • Min. Illumination : Color: 0.01 Lux @(F1.2, AGC ON), 0.028 Lux @ (F2.0, AGC ON)
  • Shutter Speed : 1/3 s to 1/100, 000 s
  • Slow Shutter : Yes
  • Auto-Iris : No
  • Day &Night : IR cut filter
  • DNR (Digital Noise Reduction) : 3D DNR
  • WDR (Wide Dynamic Range) : Digital WDR
  • Angle Adjustment (Bracket) : Pan: 0° to 360°, tilt: 0° to 180°, rotation: 0° to 360°

Camera Lens / Infrared

  • Focal Length : 4 mm
  • Aperture : F2.0
  • Focus : No
  • Lens Mount : M12

Infra Red (IR)

  • IR Range : Up to 30 m
  • Wavelength : 850 nm
