Description

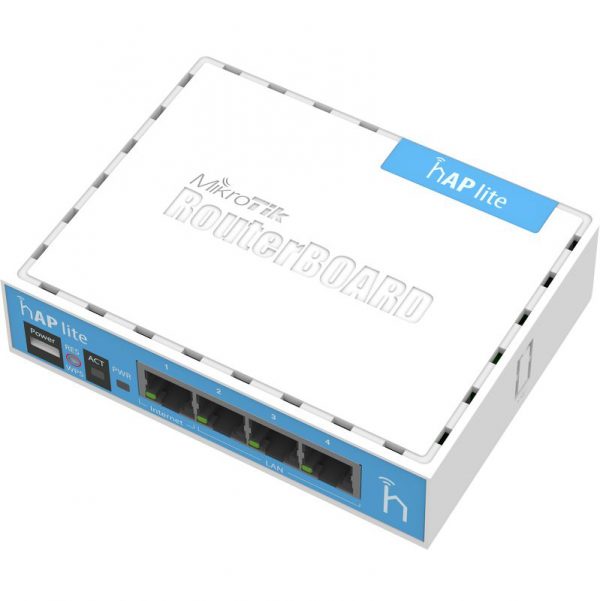

The home Access Point lite (hAP lite) is an ideal little device for your apartment, house or office.
It supports button triggered WPS, for the convenience of not typing a complicated password when somebody wants to have wireless internet access, and can also be told to change to cAP mode and join a CAPsMAN centrally managed network by the push of a button.
Of course, the device runs RouterOS with all the features, bandwidth shaping, firewall, user access control and many others.
The hAP lite is equipped with a powerful 650MHz CPU, 32MB RAM, dual chain 2.4GHz onboard wireless, four Fast Ethernet ports and a RouterOS L4 license. USB power supply is included.
Powering
MicroUSB input Voltage: 5-5 V
Number of DC inputs : 1 (MicroUSB)
Max power consumption: 3.5 W
Wireless
Antenna gain dBi for 2.4 GHz: 1.5
Wireless 2.4 GHz standards: 802.11b/g/n
Wi-Fi generation: 4
Wireless 2.4 GHz Max data rate: 300 Mbit/s
Wireless 2.4 GHz number of chains: 2
Wireless 2.4 GHz chip model: QCA9533
Ethernet
10/100 Ethernet ports: 4
Wireless specifications
2.4 GHz
1MBit/s
11MBit/s
6MBit/s
54MBit/s
MCS0
MCS7
Transmit (dBm)
22
22
20
18
20
16
Receive Sensitivity
-96
-89
-93
-74
-93
-71
