Description

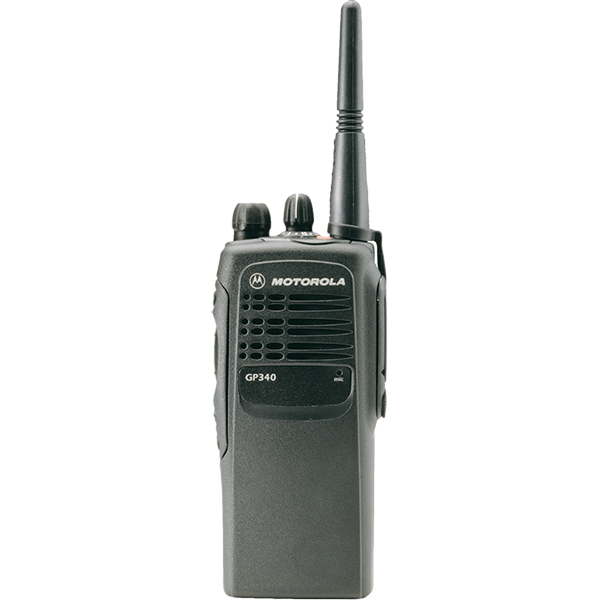

The popular Motorola GP340 portable two way radio
This Motorola GP340 portable two way radio is an excellent and unobtrusive way of keeping the team in contact. Streamlining operations with radio communication increases productivity and can form part of an organisation’s health and safety system which is particularly important for individuals who work alone or remote from the team. In addition to the features of the Motorola GP330, the Motorola GP340 Dubai features Emergency Signalling which can be configured to send a help signal to a pre-defined person or group of people at a single push of the bright orange Emergency Button.
Power Characteristics
– Adjustable power levels: Yes
– Battery life (based on a 05 05 90 duty cycle): Up to 11 hours
– Encryption: Yes
– Frequency band: Low band, VHF, UHF
– Standard battery chemistry type: Nickel Metal Hydride
Physical Characteristics
– Dimensions H x W x D (with standard battery): 137 x 57.5 x 37.5 mm
– Display: None
– Emergency button: Yes
– Keypad: None
– Weight (With 1400mAh LiIon battery): 420 g (with standard battery)
User Environment
– TIA4950, Factory Mutual (FM) options: Yes
– IP Standards: IP54
– Mil spec: 810 C
Radio Features
– Call forward: Yes
– Channel scan: Yes
– Channel spacing: 12.5, 25, 20
– Lone worker: Yes
– Number of channels: 16
– Programmable buttons: Yes
– Scan types: Normal
– Signalling: Private Line and 5-Tone
– Talkaround: Yes
– Voice operated transmit (VOX): Yes
– Voice recorder: Yes
– X-pand voice compression and low level expansion: Yes
Signalling
The radio software encompasses Private Line™ and 5-tone selective signalling.
Channel Scan
Allows activity on different communications channels to be monitored and answered.
X-Pand™ Voice Compression and Low Level Expansion
Crisp, clear and strong audio quality in virtually any noisy environment. Low level expansion allows further improvements in audio quality by reducing noise usually heard during pauses in conversation.
Voice Operated Transmit (VOX)
Hands free operation when used with VOX headset accessory.
Adjustable Power Levels
The radio output power has two settings – low power extends battery life and high power allows the radio to transmit over a greater distance.
Emergency Signalling
Sends a help signal to a pre-defined person or group of people. The help signal can contain a pre-recorded voice message enabling your whereabouts or status to be determined immediately by the receiving person.
Programmable Channel Spacing (12.5/20/25 KHz)
Flexible and easy migration of channel spacing requirements in any situation.
Lone Worker
Added security and safety for individuals who work remotely from their team. The radio enters emergency mode if the user does not respond to the warning signal.
Option Board Expandability
You can expand the existing capabilities by adding one of the following option boards. Encryption for message security, SmarTrunk II for low cost trunking, or Voice Storage option board provides voice recorder features allowing you to store and retrieve messages.
Talkaround
Allows a user to speak quietly into a radio and still be heard clearly.
Call Forward
Allows calls to be forwarded to another radio user if you are unable to answer your calls personal.
Motorola GP340 Button & Control Diagram
Here’s a quick guide to the GP340, including buttons and knobs etc.
- Channel Selector Knob
- On/Off Volume Knob
- Programmable Side Button 1
- Push to talk (PTT) Paddle
4. Programmable Side Button 2
5. Programmable Side Button 3
6. Top Programmable / Emergency Button
7. LED Status Indicator
8. Microphone
9. Antenna
10. GP340 Accessory Connector
Tough Battery Slot
Here’s a quick guide to the GP340, including buttons and knobs etc.
Quick Release Latches
Here’s a quick guide to the GP340, including buttons and knobs etc.
Motorola GP340 Battery
Motorola GP340 has a super lightweight and slimline lithium battery
