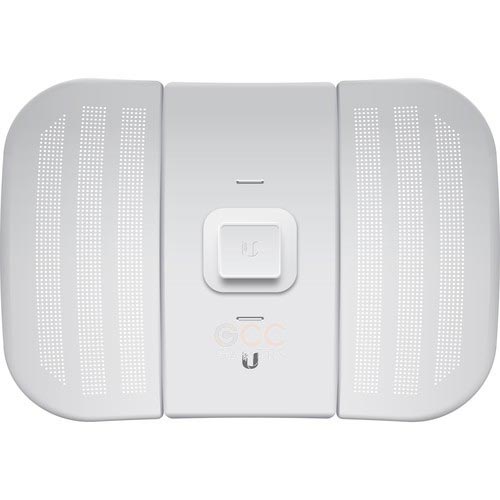

Ubiquiti Networks LBE-M5-23 LiteBeam M5 With InnerFeed Technology | LBE-M5-23

Ubiquiti LiteBeam M5 with Long-Range, Lightweight airMAX® CPE

Long-Range, Lightweight airMAX® CPE
The LiteBeam™M is an ultra-lightweight airMAX CPE device with incredible range and disruptive pricing.

Features

  • High-Gain, Directional Antenna
    The LiteBeamM provides 23 dBi of gain for long-distance connectivity and uses a directional antenna pattern for improved noise immunity.
  • Breakthrough Industrial Design
    Featuring the freedom of three-axis alignment, the LiteBeamM fully assembles in seconds – no tools needed. Only a single wrench is required for pole-mounting.
  • Compact in Size, Light in Weight
    A lightweight form factor contained within ultra-compact packaging, the LiteBeamM is ideal for shipping and logistics.
  • The Most Cost-Effective airMAX CPE Yet
    Disruptively priced, the LiteBeamM delivers incredible value as an airMAX CPE solution.
Categories: ,

Description

The LiteBeam™M is an ultra-lightweight airMAX CPE device with incredible range and disruptive pricing.

Specification

– Dimensions(No Mount): 362 x 267 x 184 mm |(14.25 x 10.51 x 7.24″)
– Weight (No Mount): 750 g (24.11 oz)
– Mounting Kit: Pole Mounting Kit (Included)
– Networking Interface: (1) 10/100 Ethernet Port
– Memory: 64 MB
– Max. Power Consumption: 4W
– Max. TX Power: 25 dBm
– Antenna Gain: 23 dBi
– Operating Frequency: Worldwide: 5150 – 5875 MHz | USA: 5150 – 5850 MHz
– Power Supply: 24V, 0.2A PoE Adapter (Included)
– Power Method: Passive PoE (Pairs 4, 5+; 7, 8 Return)
– Processor Specs: Atheros MIPS 74Kc, 533 MHz
– Operating Temperature: -40 to 70° C (-40 to 158° F)
– Operating Humidity: 5 to 95% Noncondensing
– Shock and Vibration: ETSI300-019-1.4
– ETSI Specification: EN 302 326 DN2
– ESD/EMP Protection: ± 24 kV Contact / Air
– Certifications: FCC, IC, CE
