Description

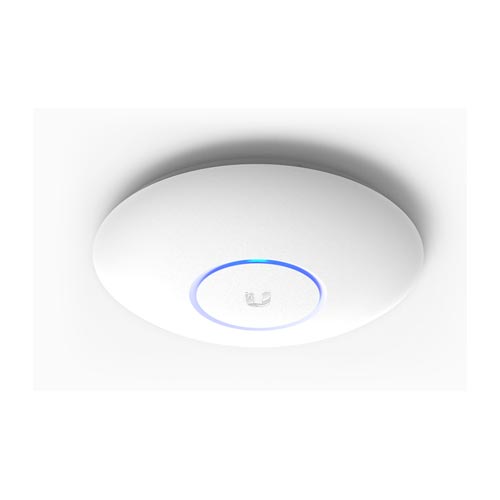

Deploy the UniFi AC Pro AP indoors or outdoors, in wireless networks requiring maximum performance. Sporting a weatherproof design, the UniFi AC Pro AP features simultaneous, dual-band, 3×3 MIMO technology and convenient 802.3af PoE/802.3at PoE+ compatibility.
Specification
– Dimensions: 196.7 x 196.7 x 35 mm (7.74 x 7.74 x 1.38″)
– Weight with Mounting Kits: 350 g (12.4 oz) | 450 g (15.9 oz)
– Networking Interface: (2) 10/100/1000 Ethernet Ports
– Port: (1) USB 2.0 Port
– Buttons: Reset
– Power Method: Passive Power over Ethernet (48V), 802.3af/802.3at Supported (Supported Voltage Range: 44 to 57VDC)
– Power Supply: UniFi Switch (PoE)
– Power: Save Supported
– Maximum Power Consumption: 9W
– Maximum TX Power: 2.4 GHz – 22 dBm | 5 GHz – 22 dBm
– Antennas: (3) Dual-Band Antennas, 2.4 GHz: 3 dBi, 5 GHz: 3 dBi
– Wi-Fi Standards: 802.11 a/b/g/n/r/k/v/ac
– Wireless Security: WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES)
– BSSID: Up to 8 per Radio
– Mounting: Wall/Ceiling (Kits Included)
– Operating Temperature: -10 to 70° C (14 to 158° F)
– Operating Humidity: 5 to 95% Noncondensing
– Certifications: CE, FCC, IC
Advanced Traffic Management
– VLAN: 802.1Q
– Advanced QoS: Per-User Rate Limiting
– Guest Traffic Isolation: Supported
– WMM: Voice, Video, Best Effort, and Background
– Concurrent Clients: 250+
Supported Data Rates (Mbps)
– 802.11ac: 6.5 Mbps to 1300 Mbps (MCS0 – MCS9 NSS1/2/3, VHT 20/40/80)
– 802.11n: 6.5 Mbps to 450 Mbps (MCS0 – MCS23, HT 20/40)
– 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
– 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
– 802.11b: 1, 2, 5.5, 11 Mbps
