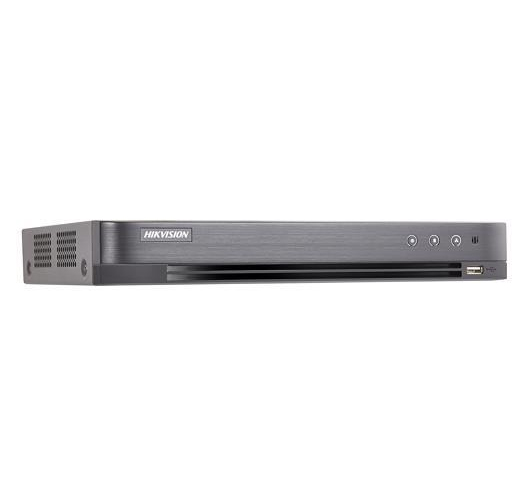

Hikvision Turbo HD DVR-DS-7204/7208HUHI-K/P

Key Features

  • Self-adaptive normal camera and Hikvision PoC camera connection
  • H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 encoding for the main stream, and H.265/H.264 for the sub-stream of analog cameras
  • Self-adaptive HDTVI/HDCVI/AHD/CVBS signal input
  • Connectable to H.265+/H.265/H.264+/H.264 IP cameras
  • Up to 5 MP resolution for recording for DS-7204HUHI-K1/P, Up to 8 MP resolution for recording for DS-7208/16HUHI-K2/P
  • Automatic power supply management for PoC camera to guarantee safety
  • Long distance transmission over UTP and coaxial cable
  • 4/8/16-ch synchronous playback
Category:

Description

Hikvision Turbo HD DVR Channel (DS-7204HUHI-K1/P, DS-7208HUHI-K2/P, DS-7216HUHI-K2/P)

Features and Functions

Video Input and Transmission

  • Self-adaptive normal camera and Hikvision PoC camera connection
  • Up to 8-ch 8 MP IP cameras input for DS-7204HUHI-K1/P, and 16/32-ch 8 MP IP cameras input for DS-7208/7216HUHI-K2/P
  • 8 MP/5 MP/4 MP HDTVI video input and live view for DS-7208/7216HUHI-K2/P, and 5 MP/4 MP for DS-7204HUHI-K1/P
  • Long distance transmission over UTP and coaxial cable: max. 500m for 1080p and 700m for 720p HDTVI signal, and 200m for PoC camera
  • Automatic power supply management for PoC camera to guarantee safety

Compression and Recording

  • H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 encoding for the main stream, and
  • H.265/H.264 for the sub-stream of analog cameras
  • Connectable to H.265+/H.265/H.264+/H.264 IP cameras
  • H.265+ can be enabled to improve encoding efficiency and reduce data storage costs
  • Recording at up to 8 MP resolution

Video Output

  • Simultaneous HDMI/VGA output
  • HDMI output at up to 4K (3840 × 2160) resolution for DS-7208/7216HUHI-K2/P
  • Separate CVBS output
  • Storage and Playback
  • One SATA interface for DS-7204HUHI-K1/P, and two SATA interfaces for DS 7208/7216HUHI-K2/P (up to 10 TB capacity per HDD)
  • 4/8/16-ch synchronous playback
  • Smart search for efficient playback
  • Supports third-party cloud storage (Dropbox/Google Drive/Microsoft OneDrive)

Smart Function

  • Supports multiple VCA (Video Content Analytics) events for both analog and smart IP cameras
  • Supports line crossing detection and intrusion detection of all channels, and 2-ch sudden scene change detection
  • VCA information overlay in live view and smart playback
  • VQD (Video Quality Diagnostics)
  • Network & Ethernet Access
  • Hik-Connect & DDNS (Dynamic Domain Name System) for easy network management
  • 1 RJ45 10M/100M self-adaptive Ethernet interface for DS-7204HUHI-K1/P, and 1 RJ45 10M/100M/1000M self-adaptive
  • Ethernet interface for DS-7208/7216HUHI-K2/P
